If your Mutoh or Mimaki wide-format printer suddenly starts producing banding, misaligned passes, or inconsistent color, your first instinct might be to blame the print head or the ink. But more often than you'd expect, the real culprit is something far less obvious: a worn printer belt.
Belt wear is one of the most underestimated causes of print quality failure in wide-format printing. Unlike a clogged print head that shows up immediately, or a broken encoder that triggers an error code, belt degradation happens slowly, silently over thousands of print cycles, until one day it's too late to ignore.
This guide walks you through why belt wear is so hard to detect, the warning signs you can actually look for, and how to catch the problem before it costs you a full day of downtime.
What Does a Printer Belt Actually Do?
In a wide-format inkjet printer, there are typically two critical belts:
The CR (Carriage) Belt drives the print head carriage back and forth across the media. Any inconsistency in belt tension or tooth engagement directly affects where ink dots land on the substrate.
The Steel Belt / Timing Belt works alongside the carriage drive system to ensure precise, repeatable positioning. On Mutoh printers in particular, the steel belt plays a structural role in keeping carriage movement smooth and controlled.
When these belts are healthy, print head movement is precise to fractions of a millimeter. When they wear, that precision degrades, and your prints suffer before you ever hear a noise or see an error message.
Why Belt Wear Happens Silently
Most mechanical failures make themselves known. A failing motor whines. A broken sensor triggers an error. A clogged damper shows in your nozzle check.
Belts are different. Here's why the degradation goes unnoticed for so long:
Wear is gradual: Belt teeth don't snap off all at once. They wear down incrementally with each pass. The precision loss is so small per cycle that your eyes and even your printer's sensors may not register the change until it's significant.
Printers compensate automatically: Modern firmware adjusts carriage timing within a certain tolerance. As a belt stretches slightly, the printer keeps "working," masking the wear with software correction right up until it can't.
The symptoms mimic other problems: Banding looks like a head alignment issue. Dot placement errors look like ink starvation. Print shops often spend hours recalibrating heads or running cleaning cycles, chasing a problem that's actually mechanical.
Visual inspection is difficult: Belts sit inside the machine, often partially obscured by the carriage assembly. Unless you know exactly what to look for, a worn belt looks nearly identical to a healthy one.
6 Warning Signs of Belt Wear to Watch For
Even though belt wear is silent, it's not invisible if you know what signals to look for.
1. Horizontal Banding That Doesn't Respond to Head Cleaning
If you're seeing consistent horizontal lines or bands in your prints and cleaning cycles make no difference, the carriage belt may be causing micro-slippage in the head pass. This is one of the earliest and most commonly misread signs.
2. Subtle Bi-Directional Misalignment
Run a bi-directional alignment print. If left-to-right and right-to-left passes are slightly off even after you've re-run the alignment calibration, a worn CR belt is a likely cause. The belt can no longer maintain consistent carriage positioning between passes.
3. Carriage Movement That Sounds "Softer" or Slightly Irregular
A healthy belt-and-pulley system produces a consistent, smooth mechanical sound. A worn belt may cause barely perceptible variations in carriage speed a slight irregular cadence that experienced operators can sometimes hear before any visual symptoms appear. Trust your ears.
4. Print Quality Degrading Under Higher Speeds
Try printing the same file at a slower speed. If quality improves noticeably, it's a strong indicator that belt tension or tooth engagement is marginal. The printer holds together at slow speeds but loses accuracy at high pass speeds, where belt slack becomes critical.
5. Visible Fraying, Glazing, or Tooth Wear

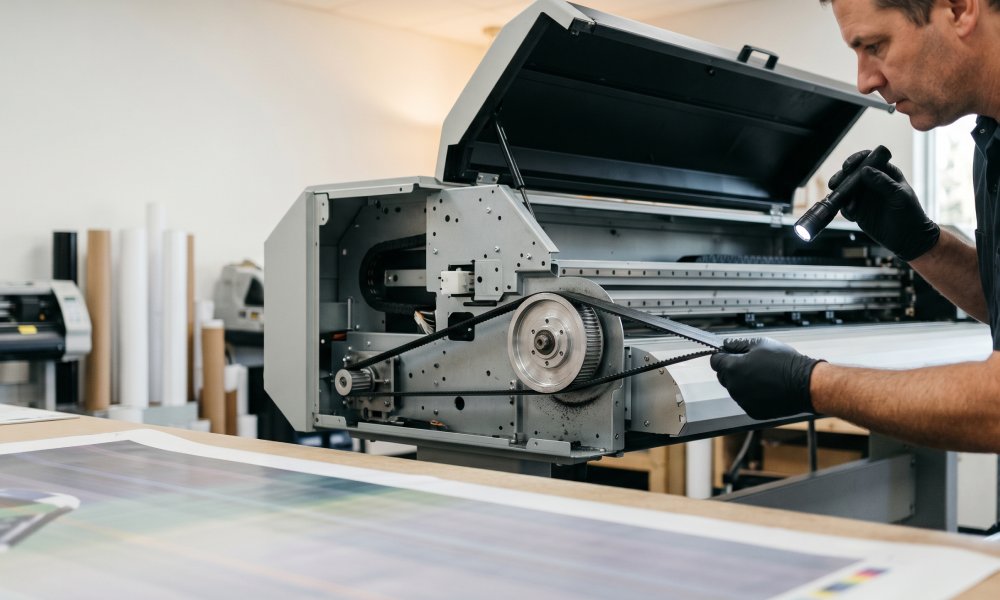

When you do open the machine for maintenance, inspect the belt surface carefully. Look for:
- Fraying along the belt edges
- A glazed or shiny appearance on the tooth contact surface (indicates heat from friction)
- Flattened or rounded belt teeth (should have crisp, defined edges)
- Fine black rubber dust is accumulating near the belt path
6. Increased Carriage Error Codes
Frequent carriage timeout or positioning errors, even if they reset and the machine seems to recover, can indicate that the belt is no longer maintaining reliable engagement with the drive pulley.
Which Belts Are Most Likely to Wear First?
Not all belts wear at the same rate. Here's what to prioritize based on print volume and model:
CR Belt on high-volume machine: The carriage belt takes the most stress in daily operation. On machines running multiple shifts, it should be inspected every 6–12 months and replaced proactively rather than reactively.
Steel belts on older Mutoh ValueJet / XpertJet models: Steel belts are extremely durable but not invincible. They can develop micro-fatigue cracks or lose tension over the years of continuous use.
Timing belts on Mimaki printers: Mimaki's timing belt systems are precision-engineered but sensitive to contamination from ink mist and cleaning fluid residue. Sticky deposits accelerate tooth wear.
Our Recommended Replacement Belts
If you've spotted any of the warning signs above, or if it's been over a year since you last inspected your belts it's worth having a genuine replacement ready before the problem forces a shutdown.
We stock original, manufacturer-spec belts for Mutoh and Mimaki printers:
- CR Belt Assy DG-43002 Mutoh VJ-1624: The primary carriage belt for the VJ-1624. One of the most frequently replaced belts in high-volume Mutoh setups.
- Steel Belt DG-49266 Mutoh XpertJet: Genuine replacement steel belt for the XpertJet series. Essential for maintaining carriage accuracy on this model.
- Steel Belt DF-43937 (64") Mutoh VJ-1604: OEM steel belt for the 64-inch VJ-1604. If you're running this wide-format workhorse, keep one in stock.
- Steel Belt DG-45268 (74") Mutoh: The 74-inch variant for wider Mutoh configurations. Precision cut to OEM specification.
- Timing Belt MP-150 S2M 380G Mimaki: Original Mimaki timing belt. Affordable to stock, expensive to be without when you need it.
Belt Wear Doesn't Happen in Isolation
When a belt wears significantly, it rarely travels alone. The stress and slippage caused by a degraded belt can accelerate wear on connected components:
- Pulleys: Belt-pulley contact is where most tooth wear originates. If you're replacing a worn belt, inspect the drive and idler pulleys for grooving or deformation.
- Encoders: A slipping carriage belt can cause irregular encoder strip readings, triggering phantom positioning errors that get misdiagnosed as encoder failure.
- Motors: A worn belt increases load on the carriage motor. Sustained belt slip can cause motor overheating over time.
Addressing belt wear early keeps these downstream components healthy and protects your wider investment in the machine.
The Bottom Line
Printer belts are cheap relative to the cost of a failed print run, a missed deadline, or an emergency service call. The problem isn't that belts are expensive to replace it's that their wear is easy to miss until it's already causing damage.
Build belt inspection into your regular maintenance schedule. Know the warning signs. And keep a genuine replacement belt on hand so that when it's time, your downtime is measured in minutes, not days.
